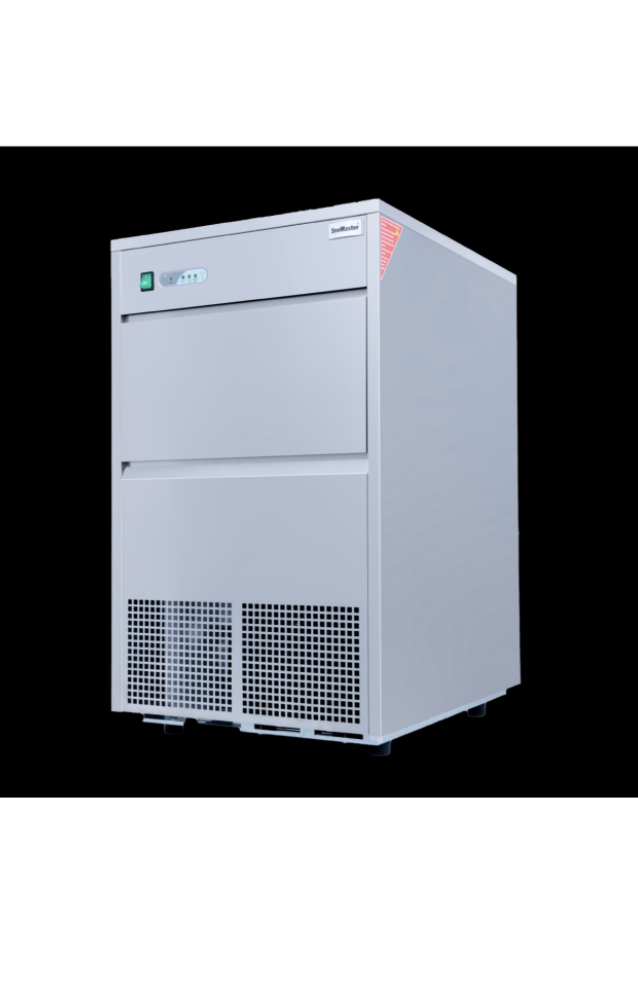

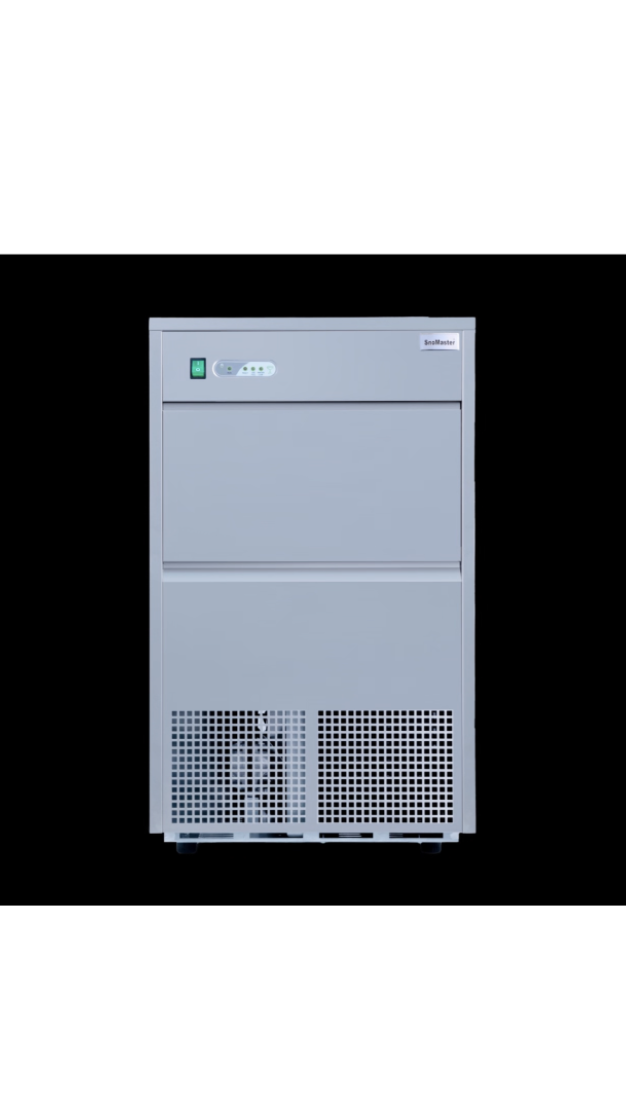

SnoMaster – 50Kg/24Hr Plumbed-In Bullet Type Ice-Maker (SM-50)

50KG/24HR PLUMBED-IN BULLET TYPE ICE-MAKER –

STAINLESS STEEL

Seize the day with the SM-50 Plumbed-In Ice-Maker, a dual-purpose powerhouse that’s ideal for both home use and small commercial operations. This remarkable unit swiftly produces up to 50kg of bullet-shaped ice in just 24 hours. Encased in durable stainless steel, it’s a perfect match for the passionate home entertainer, small businesses, or any setting where a continuous supply of chilled beverages is a must. Effortless to operate, and with an unfaltering ice supply, this ice-maker smoothly integrates into any scenario, amplifying good times and refreshing drinks.

FEATURES:

• Ice Type: Bullet Ice
• 30 Ice Bullets Per Cycle
• Ice Bullet Size (mm): H 36, D 26
• 10Kg Ice Storage Bin
• Ice Full Sensor
• Water Recycling Function
• Disposable Water Filter Cartridge Included
• Allow +/- 20mm For For Feet
• Colour: Stainless Steel

SPECIFICATIONS:

• Dimensions (mm) Unit: (H) 830 (W) 500 (D) 620
• Dimensions (mm) Packaged: (H) 880 (W) 575 (D) 675
• Storage Volume: 10Kg
• Net Weight: 45.5Kg
• Ice Making Capacity: 50Kg/24h
• Voltage: 230V/50Hz
• Total Input Power: 400W
• Rated Current: 1.6A
• Suggested Applications: Home Bar, Office, Commercial Operation, Canteen, Sports Bar, Pub, Gym
• Design Criteria: Engineered For The African ClimatNOTES:
  • We recommend a certified plumber installs these Plumbed-In Ice-Makers. These units have a gravity fed drain point, thus the drain point must be lower than the ice-maker.
  • Ensure to clean the units condenser regularly.
  • To maximize the ice-making performance of our Plumbed-In Ice-makers, it’s ideal to have them in a steady environment with a 20 degrees celcius ambient temperature and 10 degrees celcius water temperature

  What’s in the box

  1 x SM-50 Plumbed-In Ice-Maker

  1x Ice Scoop

  1 x Filter Casting Bracket

  4 x Filter Casing Screws

  1 x Micron Filter

  1 x Filter Casing Catridge

  1 x Short Water Inlet

  1 x Long Water Inlet

  1 x Drain Outlet Pipe

  1 x Water Inlet Filter

  2 x Water Inlet and Outlet Nuts

  2 x Sealing O Rings For Water Inlet/Outlet Pipes

  1 x Drainage Outlet

  4 x Appliance Feet
