Scotsman Ice Machine EC86 (38kg per 24 hours)

Max daily production – 38kg Medium Gourmet Cubes

Condensing System – Air cooled & Water cooled

Bin Storage capacity – 19kg

Dimensions – W 531mm D 600mm H 785/825*mm

Resistant stainless steel exterior

Easily accessible front ON-OFF switch

Legs included

PWD – Progressive water discharge: Pumps excess residual water up to 1.5 meters high and a distance of 15 meters.

Agion – The technology that makes products cleaner and longer lasting with built in protection working 24/7 to resist the growth of microbes and the development of unpleasant odours.

Clean Alert – advises with a blink when it’s time to clean the filter

Front access condenser air filter – a do-it-yourself cleaning operation that saves time and money and makes your ice maker live longer

Individual transparent solid cube – each single cube is an artwork: crystal clear and perfectly shaped, faithful to the Scotsman tradition.

Scale accumulation preventing system – traps ice makers’ enemy No1 in one place and makes it harmless.

Ergonomic access to ice with sliding disappearing door – one-touch door lift, makes barman’s life significantly easier.

Built-in storage bin – allows most under counter installations for easier fit-in solutions

Maximum productions shown are calculated at 10 degrees Celsius ambient / 10 degrees Celsius water temperature conditions.

Scotsman XSafe

Xsafe is a totally natural sanitation system which is fully integrated inside the ice-machine. It operates 24 hours a day, 7 days a week to keep your ice making equipment clean and safe.

The system destroys over 99% of known viruses and bacteria, and substantially reduces the formation of mould, mildew, yeast and slime within the machine preventing unpleasant odours occurring.

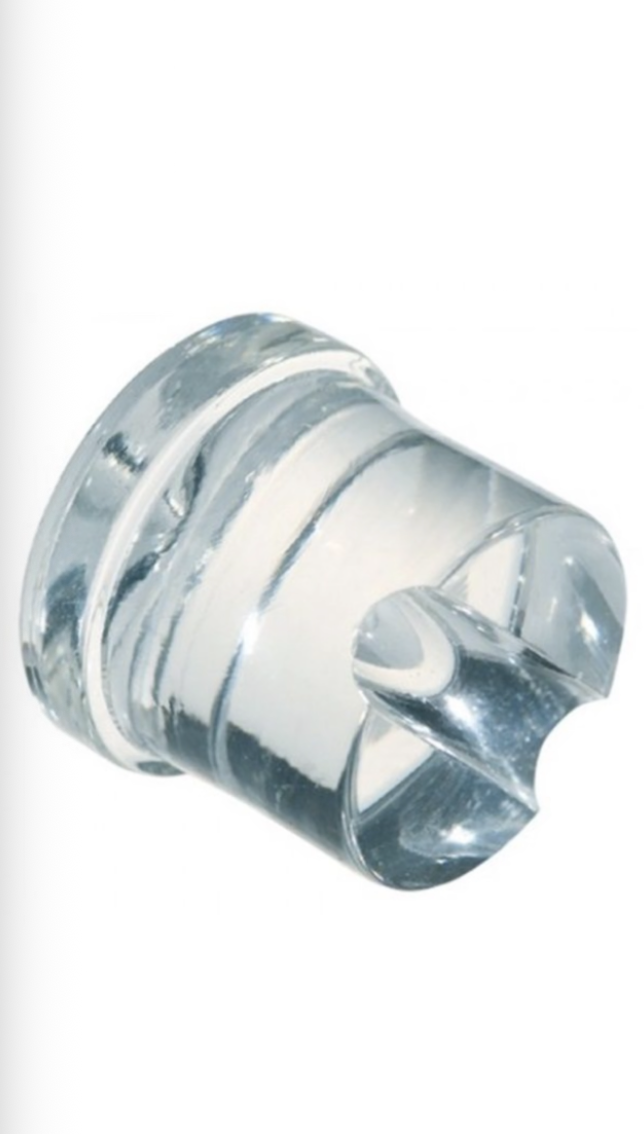

Gourmet ice cube(20g O 30mm H 34mm) – Crystal clear, pure, hard and long lasting ice cubes. It’s fast cooling action and slow dilution keeps drinks chilled for a long time

Installation Requirements – Full installation manuals available on www.scotsmansa.co.za

A water inlet valve ¾ inch male thread – within 1 meter

A ground floor level water drain point – standard 1.5 meter drain pipe supplied

Located in a cool, well ventilated position. Under counter, NOT a closed cupboard

A 220v electricity supply – within 1 meter

What’s in the box

1 x Scotsman Ice machine EC86/87 (38kg 24hours)Water inlet

pipe

1 x Water outlet pipe

1 x Small plastic scoop

1 x User Manual (AC/EC46 – AC/EC56 – AC/EC86 – X SAVE SERIES)

4 x Metal legs

1 x Copy of Scotsman warranty
